Notations

A professional LED module (PRO LED) designed for a specific shape and size of a luminaire. The light efficiency of the luminaire is over 160 lm/W. Suitable for task lighting.

LED module

A standard LED luminaire with an E27 base. The light efficiency is about 85 lm/W. Suitable for accent lighting.

LED Luminaire

A standard LED luminaire with an E14 base. Suitable for accent lighting. Used in desktop and other small-scale luminaires.

A capsule LED luminaire with a G9 base. A compact luminaire for accent lighting.

Uses high-quality electronics produced only by proven global manufacturers (cos φ 0.95)

Designed to produce task lighting.

It is not possible to provide complete heat removal having a luminaire with the standard volume

The internal volume of the luminaire does not allow for installation of high-quality electronics (cos φ 0.55)

Only accent lighting.

Efficiency

Power limitation

Lighting type

About 85 lm/W

More than 150 lm/W per luminaire

Efficient heat removal system

Эффективность

Ограничение мощности

Тип освещения

Description

A standard PRO LED luminaire with an E27, E14 base

A professional LED module (PRO Led) designed for a specific shape and size of a luminaire.

Описание

An important characteristic when choosing a luminaire. The color temperature can influence the emotional state and degree of fatigue. In the basic configuration, the luminaires can have a color temperature of 4000K or 3000K. 4000K is a neutral shade, close to the natural white color. Creates a bright, clean, productive atmosphere. 3000K refers to the warm shade that is most familiar to the eye. It will create a warm, cozy, and relaxing atmosphere. Different color temperatures are available on request.

Color temperature

Warm white

Neutral white

Cold white (for a project)

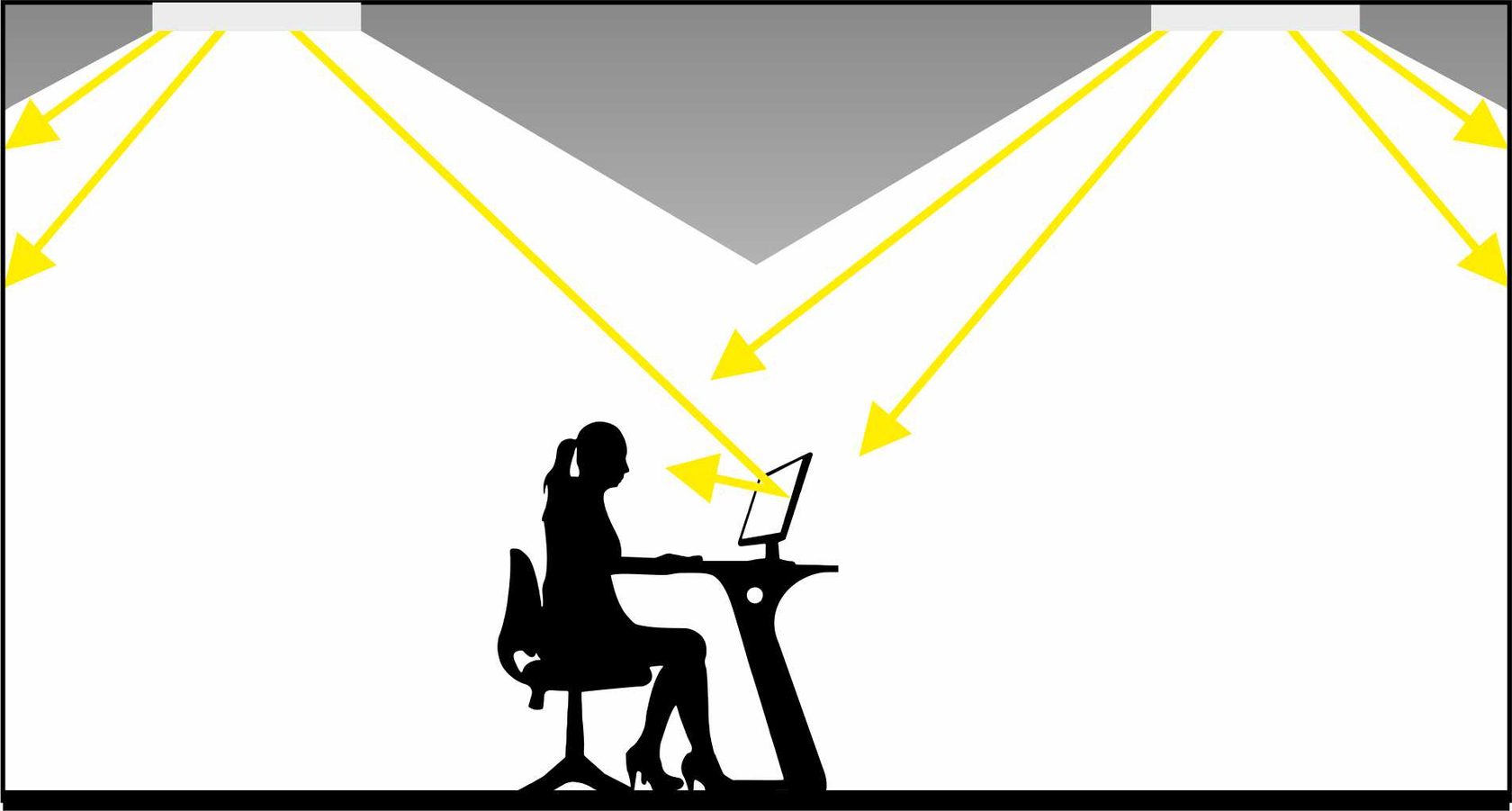

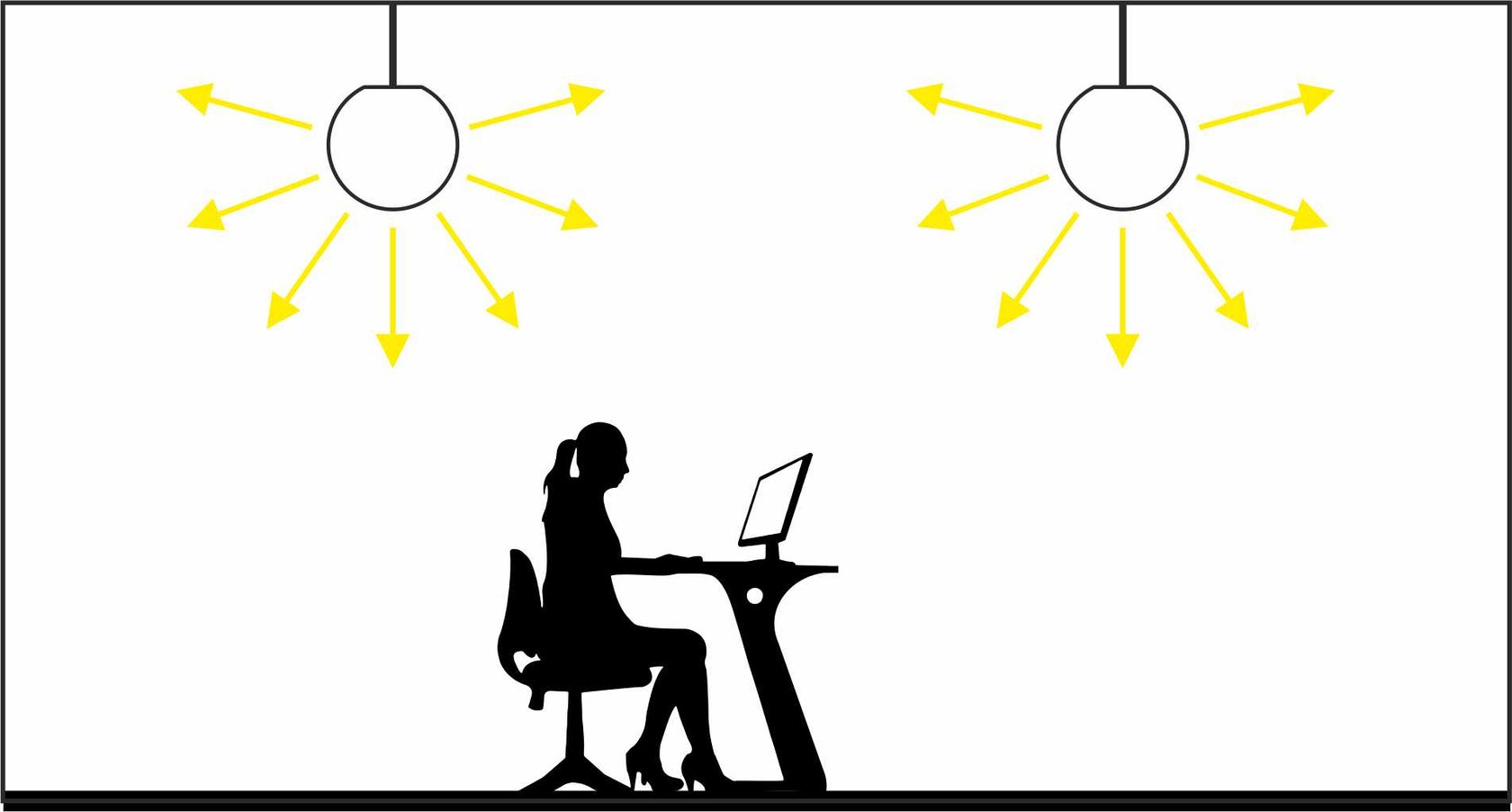

Low glare and comfort are one of the main requirements for modern lighting of commercial space and private apartments. This ГПК value is defined within a scale of 10 to 30. The higher the score, the higher the level of discomfort. For reading, writing, working at the computer, training, resting, and studying, a maximum UGR of <19 is recommended. Our luminaires provide uniform brightness and soft glow, which ensures UGR of <17 and UGR of <16 in the cases of "Cloud" and "Crater" families accordingly. In other words, our luminaires do not cause distraction or eye strain.

UGR. Unified Glare Rating

Our luminaires

Classic luminaires

The RGB (Red, Green, Blue) technology enables you to change the color of the lighting depending on the scenarios, mood, or time of day.

Color lighting (RGB)

1–10V and DALI control systems

The luminaires can be controlled through the change of intensity of the light output (brightness control) of an individual luminaire or of the whole group of luminaires. The 2 most common control protocols: 1-10V (analog), DALI (digital).

CASAMBI Control Software

Wireless lighting control system. The wireless system allows for quick and easy automation of the lighting system. The lighting is controlled with a mobile device and an app.

The lighting system is controlled with a push-button: switch on/off, adjust brightness, store brightness in the memory storage. Simple implementation, ability to manage a group of luminaires.

PUSH SWITCH control

Human centric lighting. Automation of the lighting in accordance with the physiological state of the person. The light source works based on the biological rhythms, mood and well-being of the person. This is achieved through changes in the color temperature.

HCL control

The color rendering index (CRI) shows how natural the colors look compared to natural light. We only use CRI of >80 to ensure high color rendering.

Colour rendering index

CRI>80

CRI<70

CRI<50

Elimination of pulses. It is important because pulses directly affect the person and his/her health.

RIPPLE FREE

Indicates that almost all electricity consumed by the luminaire is spent on lighting.

Power factor

II — electric shock protection class which corresponds to double or reinforced insulation. There is no need for protective earthing. Most household appliances and trolleybuses have a similar protection class.

Appliance Class II

III — electric shock protection class which corresponds to absence of dangerously high voltages. The protection is realized with a step-down transformer.

Appliance Class III

IP 40 provides partial protection from dust. It prevents insects from ingressing the luminaire. The current-carrying elements must not be touched! The device is not moistureproof and must be used in rooms that ensure protection of the luminaire from water. The outer part of the luminaire (diffuser) is water-resistant.

Ingress Protection Rating

IP 65 ensures complete protection of the luminaire with from dust and contact with current-carrying elements. Water jet protection is provided. It is possible to use the device when exposed to weather in an open environment.

Ingress Protection Rating

IP 66 provides complete protection from dust. Water ingress protection: even when exposed to a jet under pressure the luminaire is protected from water ingress.

Ingress Protection Rating

Luminaires having UHL1 category of climatic modifications are designed to work outdoors when exposed to any atmospheric factors (rain, shower, snow, dust carried by strong winds).
The operating temperature ranges from +40 to -30.

Category of Climatic Modifications

UHL2 category of climatic modifications determines the operating conditions of the luminaire: it must be placed under a canopy (protection from vertical water jets; may be exposed to splashing, dust, and snow) or in a room where the conditions are the same as in the open air.
The operating temperature ranges from +40 to -30.

UHL4 category of climatic modifications determines the operating conditions of the luminaire: it must be placed in a closed room with a heating system and artificial ventilation (temperature control, no low temperatures, low dust concentration).
The operating temperature ranges from +35 to +5.

The vandal-proof diffuser made of polyethylene provides protection from external impacts. It retains its parameters even after a 6.5J impact, which corresponds to IK 08 impact protection rating.

Vandal-Proof Diffuser Made of Polyethylene

Вандалозащи-
щенный
рассеиватель из полиэтилена

The 230 V luminaire operates in accordance with the accepted mains voltage standard.

Voltage

The 24 V luminaire is designed to be used under safe voltage. A step-down transformer is required.

The 12 V luminaire is designed to be used under safe voltage. A step-down transformer is required.

Светильник работает в соответствии с принятым европейским стандартом частоты переменного тока.

Сетевое напряжение

The Eurasian Conformity mark — a certification mark to indicate products that conform to all technical regulations of the Eurasian Customs Union. Approved by EAEU Certificate No. RU С-RU.АБ91.В.41/19 dated 24.09.2019 entered into the unified register on the RusAccreditation (Federal Service for Accreditation) website.

CE marking is an administrative marking that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area. The luminaires meet the main requirements of the Directives and harmonised standards of the European Union.

Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
